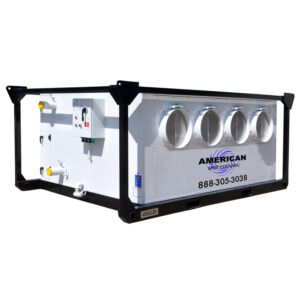

120 Ton Rental Air Handler

Nominal Air Flow 20,000 CFM
Ambient Operating Conditions 14-104ºF
Max Discharge Static Pressure 6.3in. ESP
Supply and Return Water Connections 2.5in. Victaulic
Power Supply 408V | 3 phase| 60 Hz
Supply Motor 50 Hp
Number of Discharge Air Connections 4
Number of Return Air Connections 5
CW Coil Flow 100 gpm (min) | 350 gpm (max)
HW Coil Flow 20 gpm (min) | 185 gpm (max)
Width x Length xHeight 102x259x109 in.
Weight 11,600 lbs.
