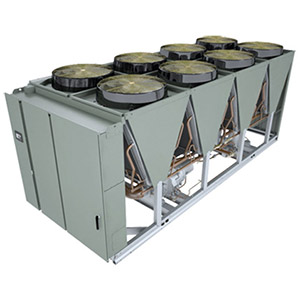

• Air-cooled chiller AdaptiSpeed™ technology
• Durability and performance: delivering improved
reliability and lower maintenance requirements with
technologies designed to last the life of the chiller, and
features like all-aluminum condenser coils to minimize the
risk of galvanic corrosion and coils’ transverse “open V”
design to allow easier cleaning from the inside out, to help
keep the air-cooled chiller operating at peak efficiency.
Evaporator Data
Design Flow Rate 516 gpm
Pressure Drop 14.4 ft
Fluid Water
Water Volume 140 gal.
Condenser Data
Ambient Temperature 95° F
Compressor
Scrollt 2
Refrigeran R134A
Flow Rate
Minimum 180
Maximum 800
Electrical
Requirements 460 V | 3 Phase | 60 H
Fuse Sizer 450 Amps
Dimensions
Width x Length xHeight 92x300x105 in.
Weight 18,000 lbs.
