SP NF Disconnect w/system Sys Circuit Breakers
Process Brine Option Capable of 25o
F LCWT
Louvered Condenser Enclosures
Differential Pressure Gauge w/flow safety interlock
Low Sound Fans
GENERAL

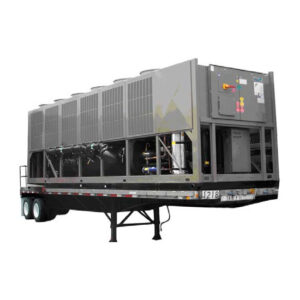

YCAV0307(1) Chiller Model Number
Ambient Operating Range 0-125o
F
Chilled Water Setpoint Limits 25-60 oF
Refrigerant Circuits 3
Equipment Insurance Value $250,000
DIMENSIONS (with Optional Trailer)
Length 45’
Width 8′ 6”
Height 12’ 10”
Total weight (less trailer) 26,437 lbs
Total weight (with trailer) 41,500 lbs
ELECTRICAL DATA
Single Point Power Supply 460V / 3∅ / 60Hz
Connections (2 per ∅) Series 16 Cam Type
Running Load Amps 538A(2)
Minimum Circuit Ampacity 579A(2)
(2) Includes associated pump values
EVAPORATOR FLOW
Minimum 300 GPM
Nominal 727 GPM
Maximum 1200 GPM
Fluid connections (ground level) 6”, Grooved
Maximum Water Sid Pressure 150 PSIG
