CHILLER FEATURES
Four Screw Compressors
Multiple Point Power w/Terminal Block
Control Transformer
Low Sound Fans
Service Isolation Valves
Condenser Coil Pre-coated Fins

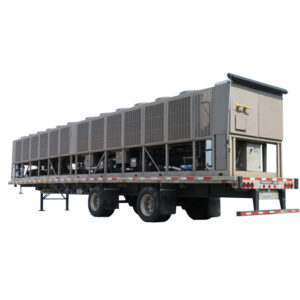

York® Chiller Model YCAV0507SA46
Refrigerant Circuits 2 x R-134a
Ambient Operating Range 0-125o
F
Leaving Chilled Liquid Setpoint 15-55 oF
Maximum Inlet Temperature 75 oF
Design Flow GPM (Range) 1179 (400-1400)
Pressure Drop 27.3’
CHW Pump 50 hp
CHW Pump Design Flow 1179 GPM @ 120’
CHWS/R Connections 6” Cam-Type
Maximum Water Side Pressure 150 PSIG
Unit Dimensions (L x W x H) 53’ x 8’6” x 13’6”
Chiller Shipping Wt. 32,750 lbs
Chiller + Trailer Shipping Wt. 47,390 lbs.
ELECTRICAL DATA
Multiple Point Power Supply 460V / 3∅ / 60Hz
(2) Connections (2/phase) (14) Series 16 Cam
Minimum Circuit Ampacity #1 464 Amps
Minimum Circuit Ampacity #2 498 Amps*
*Includes (1) 50 HP Pump
#1 System 405 RLA Chiller Only
#2 System 385 RLA Chiller Only
