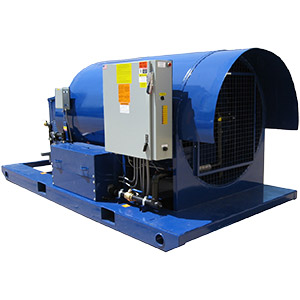

• Heavy Duty Welded Construction
• Powerful Backward Inclined Blower
• Artic Wiring Designed for -80°F
• Oil Field Skid with Fork Pockets
• Fireye Flame Safety Control with
Purge Cycle
• Discharge Temperature Control with
High Temp Shutdown
• Air Proving Switch
• Gas Pressure Regulator with Gas
Strainer
• Safety Disconnect Switch
• 50’ Remote Thermostat
Burner Capacity 2,400,000 BTU/HR
Airflow 11,000 CFM
Firing Direct Fired, Makeup Air, Lo-Hi-Lo
Fuel Natural Gas, Liquid Propane or Vapor Propane
Gas Pressure 1/2 PSI Minimum, Specify Available Gas
and Pressure When Ordering
Power 208 – 240 Vac / 1 Phase / 60 Hz
208 – 460 Vac / 3 Phase / 60 Hz
Full Load 40A @ 240 Vac / 1 Phase
22A @ 240 Vac / 3 Phase
11A @ 480 Vac / 3 Phase
Air Discharge 24” Diameter or 25” x 34” Rect
Discharge Temp. 200°F @ 0°F Ambient
Dimensions 168” L X 72” W X 77” H
Weight 2,400 Lbs.
